What is Simulated environmental temperature humidity stability chamber?

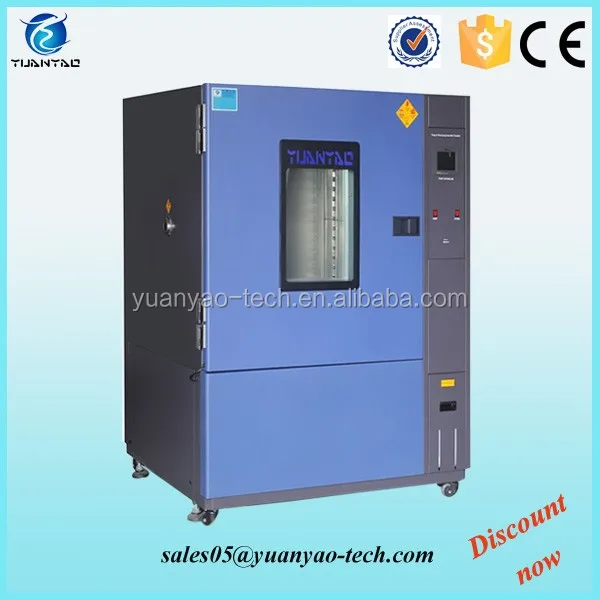

Simulated environmental temperature humidity stability chamber
Product description:
Temperature humidity stability chamber is applied to test the capabilities of heat resistance, cold resistance, dry resistance and moisture resistance of materials. It is mainly used in testing the adaptability of electronics, electrical appliances, food, auotomobile, rubber and plastic, metal and other products, parts and materials in the high and low temperatureand humid enviroment when storage transport and using.

Specifications:
Temperature humidity stability chamber
1. We are manfuacturer, offer good price.
2. Major parts adopt imported brands.
3. Free parts warranty 12 months.
4. LCD touch screen controller, easy operation.

Technical parameters:

Model No	YTH-080	YTH-150	YTH-225	YTH-408	YTH-800	YTH-1000
Inner chamber size W×H×D(mm)	400x500x400	500x600x500	500x750x600	600x850x800	1000x1000x800	1000x1000x1000
Exterior chamber size W×H×D(mm)	900x1350x910	950x1500x1050	950x1650x1150	1050x1750x1350	1450x1900x1350	1450x1900x1550
Temperature range	-73°C -60°C, -40°C, -20°C, 0°C~+150°C, +180°C

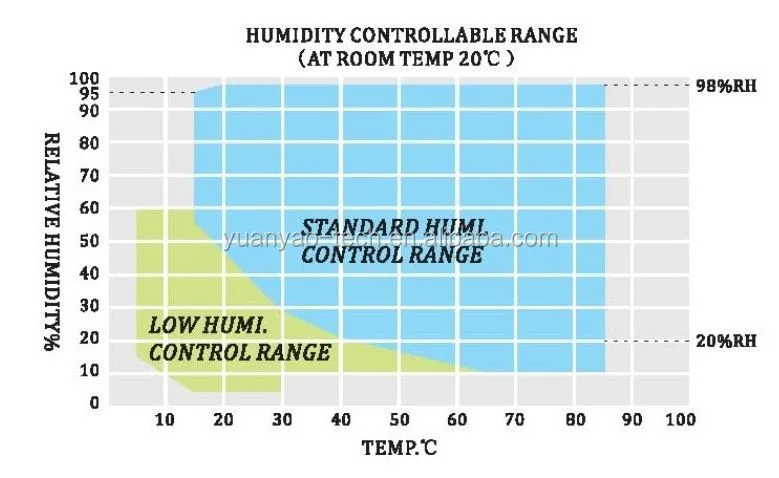

Humidity range	20%~98%RH
Temp.&Humi fluctuation	±0.2°C, ±0.5%RH
Temp.&Humi.uniformity	±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
Temp.&humi. Resolution	0.01°C,0.1%RH
Inner chamber material	SUS#304 stainless steel plate
Exterior chamber material	Stainless steel plate+ powder coated
Insulation	PU & Fiberglass wool
Wind circulation	Sirocco fan
Heating system	SUS#304 stainless steel high-speed heater
Humidifying	Surface evaporating system
Cooling	Imported compressor,finned type evaporator,air-cooling condenser
Dehumidifying	ADP critical dewpoint cooling/dehumidifying method
Controller	Digital electronic indicators+S.S.R.With PID automatic calculation capability
Power supply	AC 1 phase 220V; 3 phase 380V 60/50Hz

Features:

• Improved Airflow - The conditioning plenum is improved to accommodate a larger fan blade and a more ideal airflow pattern. This results in substantially improved temperature uniformity under real-world loading conditions.
• Programmed On/Off Mode - Allows the chamber to be turned off completely at the end of a stored profile or via computer interface
• Condensate Drain - The conditioning plenum has a drain to permit removal of condensate from the evaporator that can occur when cycling between low to high temperatures.
• High/Low Temperature Limit Controller and Alarm
  Provides independent protection against excess temperatures. Both high and low limits can be set. The limit controller will shut down the chamber and trigger the audible alarm in the event of an out of limit condition.
• Viewing Window & Interior Light window minimizes thermal losses. Oven-rated interior light protrudes minimally in workspace.

Besides temperature humidity stability chamber, we also have other machines as below:

(1) Temperature/ humidity test series: Temperature humidity chamber, Walk in stability chamber, Thermal shock test chamber, High altitude low pressure simulation test chamber, Ramp rate temperature chamber, etc
(2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
(4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.

If you are interested in temperature humidity stability chamber, please kindly contact Robin Wang via e-mail sales05atyuanyao-tech.com or trademanager yuanyaotech or skype robinwang00. Welcome to enquire and visit us.

Why choose us?

1. Considerate Service

Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
Free parts warranty for 12 months. We can offer support via e-mail, telephone, skype, etc. On-site technical support can be available with charges paid by the customer.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:

The chamber will be covered with air bubble film before put into wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency
etc.

How to Contact Us?

Please Send your inquiry details to you sales05atyuanyao-tech.com.
